What is Aramid Fiber Packing?
Aramid fiber packing, often referred to as braided packing, is a high-performance sealing solution engineered for demanding industrial applications. Derived from synthetic aramid polymers, these fibers exhibit exceptional strength, thermal stability, and chemical resistance. At Kaxite Seals, we specialize in manufacturing premium-grade aramid fiber packing designed to provide reliable, long-lasting seals in pumps, valves, agitators, and other rotary or reciprocating equipment, even under extreme conditions of pressure, temperature, and corrosive media.
Key Features & Benefits of Kaxite Seals Aramid Fiber Packing
Choosing the right sealing material is critical for operational efficiency and safety. Our aramid fiber packing offers a superior combination of properties that outperform traditional materials like asbestos, PTFE, or graphite.
- Exceptional Thermal Stability: Withstands continuous operating temperatures up to 300°C (572°F) and short-term peaks even higher, making it ideal for steam, hot oil, and high-heat processes.
- Outstanding Tensile Strength: Aramid fibers possess an extremely high strength-to-weight ratio, resulting in packing that is incredibly durable and resistant to extrusion and blow-out under high pressure.
- Superior Chemical Resistance: Excellent resistance to a wide range of chemicals, including many solvents, hydrocarbons, alkalis, and acids, ensuring longevity in corrosive environments.
- Low Creep and High Dimensional Stability: Maintains its shape and sealing force over time, reducing the need for frequent re-tightening and preventing leakage.
- Excellent Abrasion Resistance: The inherent toughness of aramid fibers provides outstanding wear resistance against shaft or sleeve surfaces, extending both packing and equipment life.
- Non-Conductive and Non-Magnetic: Suitable for applications requiring electrical insulation or where magnetic materials are prohibited.
- Flexible and Conformable: Braided construction allows for easy installation and excellent conformation to sealing surfaces, even on slightly worn equipment.
Kaxite Seals Aramid Fiber Packing: Technical Specifications & Product Range
Our products are meticulously engineered to meet precise industrial standards. Below are the detailed specifications and available styles for our aramid fiber packing.
Standard Product Parameters
| Parameter | Specification / Value | Remarks |
|---|---|---|
| Fiber Material | High-purity Para-Aramid (e.g., Kevlar®-type) | May be blended with PTFE, graphite, or other lubricants. |
| Temperature Range | -100°C to +300°C (-148°F to +572°F) | Short-term peaks up to 350°C (662°F) possible. |
| pH Range | 2 - 13 | Optimal performance within this range. Consult for specific acids/alkalis. |
| Maximum Pressure | Up to 25 MPa (3600 psi) | Dependent on cross-section, braid style, and application. |
| Shaft Speed | Up to 25 m/s (82 ft/s) | For rotary applications; lubrication recommended for high speeds. |
| Specific Gravity | ~1.4 - 1.45 | |
| Tensile Strength | > 3000 MPa (435,000 psi) (fiber) | Exceptional mechanical strength. |
| Thermal Conductivity | Low (~0.04 W/m·K) | Good thermal insulation properties. |
Available Styles & Configurations
| Style Code | Braid Type | Core/Lubricant | Typical Applications | Standard Sizes (Inch/mm) |
|---|---|---|---|---|
| KX-AF101 | Square Braid, Plaited | Dry, PTFE Impregnated | General service, valves, pumps handling chemicals. | 1/4" to 1" (6mm to 25mm) |

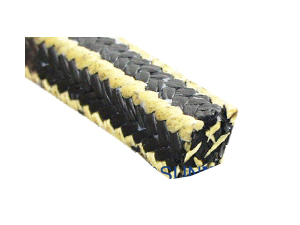

| KX-AF202 | Interbraid (Braided-over-Braided) | PTFE & Graphite Blend | High-pressure pumps, agitators, severe service. | 3/8" to 1-1/4" (10mm to 32mm) |
| KX-AF303 | Square Braid | High-Purity Graphite Filament | High-temperature steam, hot oils, heat transfer fluids. | 1/4" to 3/4" (6mm to 19mm) |

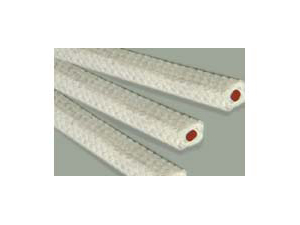

| KX-AF404 | Twisted (Ply-over-Core) | Non-Asbestos, Elastomeric Core | Low-pressure reciprocating rods, mixers. | 3/16" to 5/8" (5mm to 16mm) |
Industry Applications of Aramid Fiber Packing
The versatility of Kaxite Seals aramid fiber packing makes it a preferred choice across numerous sectors:
- Chemical & Petrochemical Processing: Sealing pumps and valves handling acids, caustics, solvents, and hydrocarbons.
- Power Generation: Sealing in boiler feed pumps, steam turbines, valves, and other high-temperature/pressure auxiliary equipment.
- Oil & Gas: Downhole tools, Christmas tree valves, pipeline pumps, and refining equipment.
- Pulp & Paper: Digesters, bleach washers, and pumps dealing with aggressive chemicals and high temperatures.
- Marine & Shipbuilding: Stern tube seals, pump seals, and valve stems in engine rooms and cargo systems.
- General Manufacturing: Agitators, mixers, autoclaves, and any equipment requiring a robust, reliable mechanical seal alternative.
Frequently Asked Questions (FAQ) About Aramid Fiber Packing
Q: How does aramid fiber packing compare to graphite packing?
A: While both are high-performance, key differences exist. Aramid packing offers far greater tensile and abrasion resistance, making it more durable against physical wear. Graphite packing generally has better thermal conductivity and higher maximum temperature limits but can be more brittle and susceptible to erosion in high-velocity applications. For services involving high shaft speed, vibration, or potential for mechanical abuse, aramid from Kaxite Seals is often the more robust choice.
Q: Can Kaxite Seals aramid packing be used with potable water?
A: Yes, but specific grades must be selected. Our KX-AF101 style with a food-grade PTFE impregnation is designed for such applications. It is manufactured with certified materials that meet relevant standards for incidental fluid contact. Always confirm the exact material specifications with our engineering team for potable water or food processing uses.
Q: What is the proper installation procedure for this type of packing?
A: Correct installation is crucial for performance. Key steps include: cleaning the stuffing box and shaft thoroughly; using rings cut exactly on a mandrel (not the shaft) with staggered joints (typically 90° apart); installing rings one at a time, seating each firmly with a tamping tool; following the equipment manufacturer's or Kaxite Seals' recommended initial gland compression (usually hand-tight plus 1/4 to 1/2 turn). Always allow a brief run-in period and subsequent slight adjustment after the equipment reaches operating temperature.
Q: How long can I expect aramid packing to last in service?
A: Service life varies dramatically based on application conditions: fluid type, temperature, pressure, shaft speed, surface finish, and alignment. Under standard conditions in a well-maintained pump, Kaxite Seals aramid packing can last from several months to multiple years. In severe service, lifespan may be shorter but will typically far exceed that of conventional packings. Regular monitoring and proper adjustment are the best ways to maximize packing life.
Q: Does it require a break-in period or external lubrication?
A: Yes, a controlled break-in period is essential. After installation, run the equipment at reduced pressure if possible, allowing the packing to warm up and seat properly over a few hours. Adjust the gland follower lightly as needed to control leakage to a slight drip (5-60 drops per minute). External flush water or lubrication is not always required but is highly recommended for abrasive fluids, high speeds, or dry-running situations to reduce friction and heat build-up.
Q: Can Kaxite Seals provide custom aramid packing formulations?
A: Absolutely. Our core expertise at Kaxite Seals lies in developing tailored sealing solutions. We can customize fiber blends (e.g., with more graphite for higher temperature, or different lubricants for specific chemicals), braid styles, densities, and sizes to meet unique pressure-velocity (PV) values, chemical exposures, or dimensional requirements. Contact our technical support with your application details for a custom recommendation.
