Unveiling Precision: The Machinery Behind Superior Graphite Reinforced Gaskets

In the demanding world of industrial sealing, where extreme temperatures, aggressive chemicals, and high pressures are the norm, Machines for Graphite Reinforced Gaskets represent the pinnacle of manufacturing technology. These are not simple presses; they are sophisticated systems engineered to transform raw, flexible graphite foil and metal reinforcement into robust, reliable sealing components. The quality, consistency, and performance of the final gasket are directly dictated by the precision and capabilities of the machinery used in its production. At Kaxite Seals, we understand this intrinsic link. Our commitment to excellence begins with our state-of-the-art production lines, specifically designed and calibrated for graphite reinforced gasket manufacturing.

The process of creating a graphite reinforced gasket—often known as a Flexible Graphite Gasket with a stainless steel or other metal insert—requires careful handling of the graphite material to prevent tearing, ensure uniform density, and achieve perfect adhesion to the metal core. Standard equipment falls short. Specialized machinery is essential to control variables like pressure, temperature, feed rate, and cutting accuracy. This article delves into the critical parameters, technical specifications, and operational nuances of these advanced machines, providing a comprehensive guide for engineers, procurement specialists, and industry professionals seeking to understand the backbone of high-quality gasket production.

Core Technical Specifications of Graphite Gasket Manufacturing Machines

The efficacy of a gasket manufacturing line is measured by its key performance indicators. Below is a detailed breakdown of the essential parameters that define top-tier machinery in this sector.

• Lamination & Calendering System: This is the heart of the process. It involves bonding the graphite foil to the metal reinforcement (typically perforated or expanded metal). The system must apply consistent, controllable pressure across the entire width of the material to eliminate air pockets and ensure a void-free laminate.
• Working Pressure Range: A broad and precisely controllable pressure range is non-negotiable. Machines must handle delicate initial lamination (e.g., 50-100 PSI) and higher-pressure final calendering (up to 2000 PSI or more for high-density gaskets) without causing material distortion or damaging the metal core.
• Temperature Control Capability: While graphite is often laminated at ambient temperatures, some processes or specific material grades benefit from controlled heat application. Machines with integrated heating platens or rollers (capable of 50°C to 200°C) offer greater versatility for specialized products.
• Web Width & Feed Accuracy: The maximum width of the graphite/metal web the machine can process determines the maximum gasket sheet size or the efficiency for multiple strips. Precision feed systems with servo motors ensure consistent material advance, critical for subsequent cutting and stamping operations.

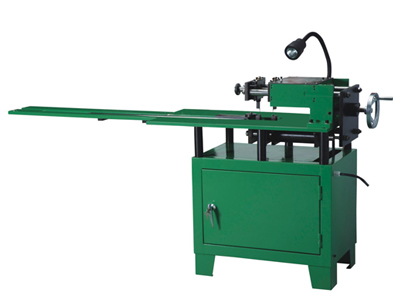

• Cutting & Stamping Mechanism: Post-lamination, the composite sheet is cut into blanks or directly stamped into finished gaskets. This requires high-tonnage punching presses or CNC-controlled cutting systems (laser, waterjet, or clicker presses) that produce clean, burr-free edges without delaminating the graphite.
• Control System & Automation: Modern machines feature Programmable Logic Controllers (PLCs) and Human-Machine Interfaces (HMIs). These systems store recipes for different gasket grades, monitor production parameters in real-time, and ensure batch-to-batch consistency, a hallmark of the Kaxite Seals production philosophy.
• Safety & Dust Extraction: Graphite particles can be conductive and require careful handling. Integrated dust collection and extraction systems are mandatory to maintain a clean production environment, protect the machinery's electronic components, and ensure operator safety.

Comparative Analysis: Machine Types for Different Production Scales

Choosing the right machinery depends on production volume, gasket complexity, and required flexibility. The following table outlines the primary machine configurations used in the industry.

FAQ: Machines for Graphite Reinforced Gaskets

Q: What is the single most important feature to look for in a machine for making graphite reinforced gaskets?
A: The most critical feature is precision pressure control during lamination. Inconsistent or uneven pressure leads to areas of low density in the graphite, creating potential leak paths in the final gasket. A machine must provide perfectly parallel platens or rollers and a controlled, hydraulic or servo-driven pressure system that can be finely adjusted and repeated for every production batch.

Q: Can standard rubber or cork gasket presses be used for graphite reinforced materials?
A: Generally, no. Standard presses lack the necessary finesse and specific features. Graphite foil is fragile and can tear if not fed and tensioned correctly. Furthermore, the abrasive nature of graphite particles requires enhanced wear protection on guiding elements and cutting surfaces. Machines designed for graphite incorporate material-handling systems, appropriate sealing to protect bearings and guides from dust, and often different cutting dynamics to achieve clean edges without compressing and damaging the graphite structure.

Q: How does machinery affect the final gasket's performance metrics like creep relaxation and blow-out resistance?
A: The machinery has a direct and profound impact. Creep relaxation (the loss of sealing force over time) is mitigated by achieving a high, uniform initial density in the graphite layer. This is solely a function of the laminating pressure and control. Blow-out resistance is a function of both the laminate integrity (the bond between graphite and metal) and the clean, precise cutting of the inner diameter. Poorly cut or delaminated edges are failure initiation points. Therefore, machinery that ensures perfect lamination and clean, sharp cutting directly translates to superior gasket performance in the field.

Q: What role does automation play in ensuring gasket quality?
A: Automation, through PLC controls, is fundamental for quality assurance. It eliminates human error from the setting of critical parameters. Once an optimal "recipe" for pressure, feed speed, and temperature is developed for a specific gasket grade, the PLC will replicate it identically for every production run. This guarantees that every batch of Kaxite Seals gaskets meets the same high standard. Automated systems also include monitoring and alarm functions that halt production if a parameter drifts out of specification, preventing the manufacture of non-conforming material.

Q: We need to produce gaskets with special features like PTFE coating or conductive rubber edge seals. Can standard graphite gasket machinery handle this?
A: This requires a more specialized or modified machine configuration. Adding a PTFE coating typically involves an additional in-line station for film application and heat sealing before or after the main lamination process. Applying edge seals often requires a secondary operation. While a base graphite gasket production line forms the core, its modularity and ability to integrate with auxiliary application systems are key. At Kaxite Seals, our technical team specializes in adapting processes and machinery to accommodate such value-added features for custom sealing solutions.

Q: What are the key maintenance considerations for this type of equipment?
A: Preventive maintenance is paramount due to the abrasive graphite dust. Key tasks include: regular cleaning and inspection of dust extraction systems; frequent lubrication of guide rails and bearings with appropriate, dust-resistant greases; inspection and replacement of worn cutting blades or punch dies; and calibration of pressure transducers and heating elements. A well-maintained machine not only lasts longer but also maintains the precision required for consistent gasket quality. Downtime for maintenance must be factored into production planning.

Integration and the Kaxite Seals Advantage

The journey from raw materials to a trusted sealing component is complex. It requires more than just individual machines; it demands a fully integrated production ecosystem where each stage—from uncoiling the metal reinforcement and graphite rolls, through precision lamination and calendering, to final cutting, inspection, and packaging—is seamlessly connected and controlled. This integration minimizes handling, reduces contamination risk, and ensures traceability.

Kaxite Seals has invested in precisely such an integrated manufacturing philosophy. Our facility houses synchronized lines that combine the robustness of high-tonnage presses with the precision of CNC technology and the consistency of automated control systems. This allows us to produce standard graphite reinforced gaskets with unmatched efficiency while retaining the agility to employ specialized machine setups for custom, engineered sealing solutions. Our deep understanding of the machinery's capabilities enables our engineering team to design gaskets that are not only functionally superior but also optimized for manufacturability, ensuring reliability and value for our clients.

When you specify a graphite reinforced gasket, you are indirectly specifying the machinery and process that created it. The precision engineering embedded in advanced production equipment translates directly into the performance security of the seal in your application. By focusing on the technological core of manufacturing, Kaxite Seals ensures that every gasket delivers on the promise of containing pressure, resisting media, and maintaining a reliable seal under the most challenging conditions.
