Engineered for Excellence: The Definitive Guide to Graphite PTFE Packing
In the demanding world of industrial sealing, where extreme temperatures, aggressive chemicals, and relentless pressure are daily challenges, facility managers and engineers require solutions that don't just work but excel. Graphite PTFE Packing represents a pinnacle of material science, merging the unparalleled chemical resistance and low friction of PTFE (Polytetrafluoroethylene) with the exceptional thermal conductivity and self-lubricating properties of high-purity graphite. This advanced composite material delivers a sealing performance that surpasses traditional options, offering extended service life, reduced maintenance downtime, and superior reliability for a vast array of rotating and reciprocating equipment.
At Kaxite Seals, with decades of specialization in high-performance sealing solutions, we have refined the manufacturing of Graphite PTFE Packing to an art. Our product is not merely a combination of materials; it is a precisely engineered system designed to address the most common failure points in gland packing applications. The unique braiding or filament-winding techniques we employ ensure optimal density, flexibility, and structural integrity, allowing the packing to conform perfectly to the shaft or rod while maintaining its resilience under dynamic conditions.
Core Advantages of Kaxite Graphite PTFE Packing
- Superior Thermal Management: The integrated graphite flakes provide excellent heat dissipation away from the shaft surface, preventing overheating, shaft scoring, and premature packing degradation.
- Universal Chemical Compatibility: The PTFE matrix offers near-inert resistance to a vast spectrum of chemicals, solvents, and acids, making it suitable for highly corrosive services in chemical processing, pharmaceuticals, and petrochemicals.
- Exceptional Self-Lubrication: Both PTFE and graphite are intrinsic lubricants. This dual-action lubrication minimizes friction, reduces breakout and running torque, and lowers power consumption for pumps and mixers.
- Extended Service Life: The combination of chemical inertness, thermal stability, and low wear results in significantly longer packing life compared to asbestos, aramid, or pure PTFE packings, reducing replacement frequency and total cost of ownership.
- Wide Temperature Range: Capable of performing consistently in cryogenic applications as low as -212°F (-100°C) up to high-temperature services of 500°F (260°C) in oxidizing atmospheres, and even higher in inert environments.
- FDA-Compliant & Clean: Certain grades are manufactured with ingredients that comply with FDA regulations 21 CFR 177.1550 for non-food contact and other standards, making them ideal for food, beverage, and potable water applications.
Detailed Product Specifications & Technical Data
The performance of Graphite PTFE Packing is defined by its precise physical and mechanical properties. Below are the standard specifications for Kaxite Seals' flagship GP-800 series. Custom formulations for specific pH, pressure, or speed requirements are available upon consultation.
| Property | Test Method | Typical Value / Range | Significance for Performance |
|---|---|---|---|
| Density | ASTM F 1315 | 1.8 - 2.2 g/cm³ | Indicates packing tightness and suitability for high-pressure applications. |
| Temperature Range | Continuous Service | -212°F to +500°F (-100°C to +260°C) | Defines the operational limits for safe and effective sealing. |
| pH Range | Full Immersion | 0 - 14 | Confirms compatibility with strongly acidic to strongly alkaline media. |
| Tensile Strength | ASTM D 2256 | > 12,000 psi (83 MPa) | Measures resistance to stretching and breaking during installation and operation. |
| Coefficient of Friction | ASTM D 1894 | 0.08 - 0.12 (Dynamic) | Quantifies the self-lubricating effect; lower values mean less wear and power loss. |
| Thermal Conductivity | ASTM E 1225 | 5 - 10 W/m·K | High value critical for transferring frictional heat away from the shaft. |
| Shaft Speed | Maximum Recommended | Up to 25 ft/sec (7.6 m/sec) | Guideline for centrifugal pumps, mixers, and other high-speed equipment. |
| Pressure | Maximum Sealing Capacity | Up to 2500 psi (172 bar) | Suitable for high-pressure pump glands, valves, and reactor stirrers. |
Available Styles & Configurations from Kaxite Seals
To match the specific requirements of your equipment and service conditions, we offer Graphite PTFE Packing in several engineered forms:

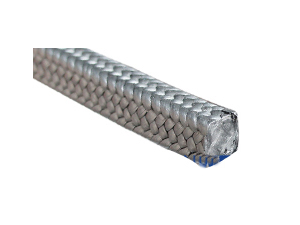

- Braided Style: The most common form, offering excellent flexibility, density control, and ease of installation. Ideal for general service on pumps, valves, and agitators.
- Filament (Ply) Style: Constructed from multiple plies of oriented PTFE filaments impregnated with graphite. Provides superior strength, extrusion resistance, and dimensional stability for high-pressure, high-speed applications.
- Die-Molded Rings: Pre-formed rings with precise dimensions for applications where braided packing is not suitable or for use in segmented seal arrangements.
- Spool Packing: Continuous length supplied on spools, allowing for custom cut-to-length on-site, minimizing waste and ensuring the perfect fit for any stuffing box.
Graphite PTFE Packing: Frequently Asked Questions (FAQ)
Q: What are the primary applications for Graphite PTFE Packing?
A: This packing is exceptionally versatile. Its primary applications include centrifugal and positive displacement pumps handling acids, caustics, solvents, and ultra-pure fluids; valve stems in chemical processing; agitator shafts in reactors and mixers; expansion joints; and equipment in food, pharmaceutical, and pulp & paper industries where cleanliness and chemical resistance are paramount.
Q: How does Graphite PTFE Packing compare to traditional braided PTFE packing?
A: While pure PTFE packing offers great chemical resistance, it has relatively poor thermal conductivity, which can lead to heat buildup. The addition of graphite dramatically improves heat dissipation, allowing for higher shaft speeds and pressures, and reducing the risk of thermal degradation. Graphite also enhances the natural lubricity of PTFE, resulting in lower friction and longer life.
Q: Is this packing suitable for high-speed pump applications?
A: Yes, specifically the filament-wound or ply-style Graphite PTFE Packing from Kaxite Seals is designed for high-speed service. Its high tensile strength, excellent thermal conductivity, and low coefficient of friction make it capable of handling shaft speeds up to 25 feet per second, making it a reliable choice for demanding pump duties.
Q: Can it be used for both rotating and reciprocating shafts?
A: Absolutely. The flexible, braided construction allows it to conform and seal effectively on both rotating shafts (like those in pumps) and reciprocating shafts (like those in plunger pumps or compressor rods). The self-lubricating properties are beneficial in both motion types to prevent stick-slip and reduce wear.
Q: What is the proper installation procedure for this type of packing?
A: Correct installation is critical. The stuffing box should be clean and dry. Rings should be cut using a sharp blade on a mandrel of the exact shaft diameter. Stagger the ring joints by 90 degrees. Install rings one at a time, seating each firmly with a tamping tool. Follow the manufacturer's torque specifications for the gland follower, typically hand-tight plus 1/4 to 1/2 turn. It is designed to leak slightly initially; a brief run-in period allows the packing to seat and form an optimal seal.
Q: Does Kaxite Seals offer FDA-compliant grades for food industry use?
A: Yes, Kaxite Seals provides specific grades of Graphite PTFE Packing that are manufactured using components compliant with FDA regulations 21 CFR 177.1550 for incidental food contact. These grades are also suitable for pharmaceutical and potable water applications, offering the same high performance with the necessary regulatory approvals.
Q: How do I select the correct size and style for my equipment?
A: Selection requires knowing your shaft/stem diameter and stuffing box bore diameter to calculate the correct cross-section (width) of the packing. The service conditions—media, temperature, pressure, and shaft speed—determine the optimal style (braided, filament-wound). The engineering team at Kaxite Seals is available to assist with this selection process to ensure optimal performance and longevity.
