Aramid Fiber Packing

Kaxite Seals presents Aramid Fiber Packing, a premium sealing solution crafted from high-strength aramid fibers for exceptional durability and resistance in demanding industrial applications. Perfect for engineers and manufacturers, it ensures leak-free performance, reduces maintenance costs, and enhances safety. Unlike standard packings, it offers superior thermal stability and chemical resistance, delivering reliable protection and peace of mind. Trust Kaxite Seals for cutting-edge sealing technology that boosts efficiency and longevity.

Send Inquiry

Product Description

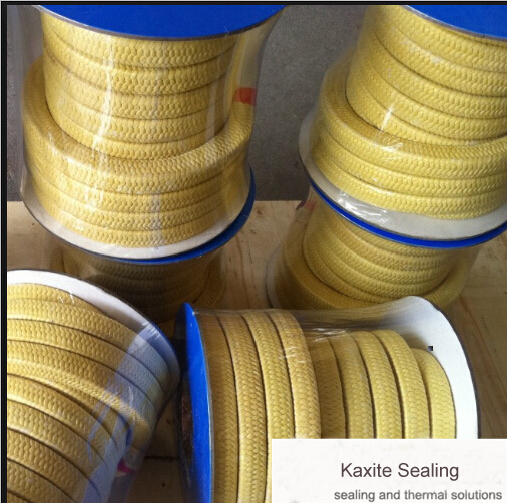

Aramid Fiber Packing

Aramid Fiber Packing Aramid Fiber Packing is braided from high quality Dupont Aramid/Kevlar fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.

APPLICATION:

It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be used un-cooled up to 160^oC.
It can be used as stand-alone packing also combined with others as anti-extrusion ring.

Aramid Fiber Packing Technical Data
Pressure	8-25MPa
Temperature	-100-280^oC
PH Range	2-13
Linear speed	0-15m/s
Density	1.3-1.4g/cm3
Section Size	33mm-100100mm
Package	5kgs or 10kgs per reel in a box/or as the requirement of the client
